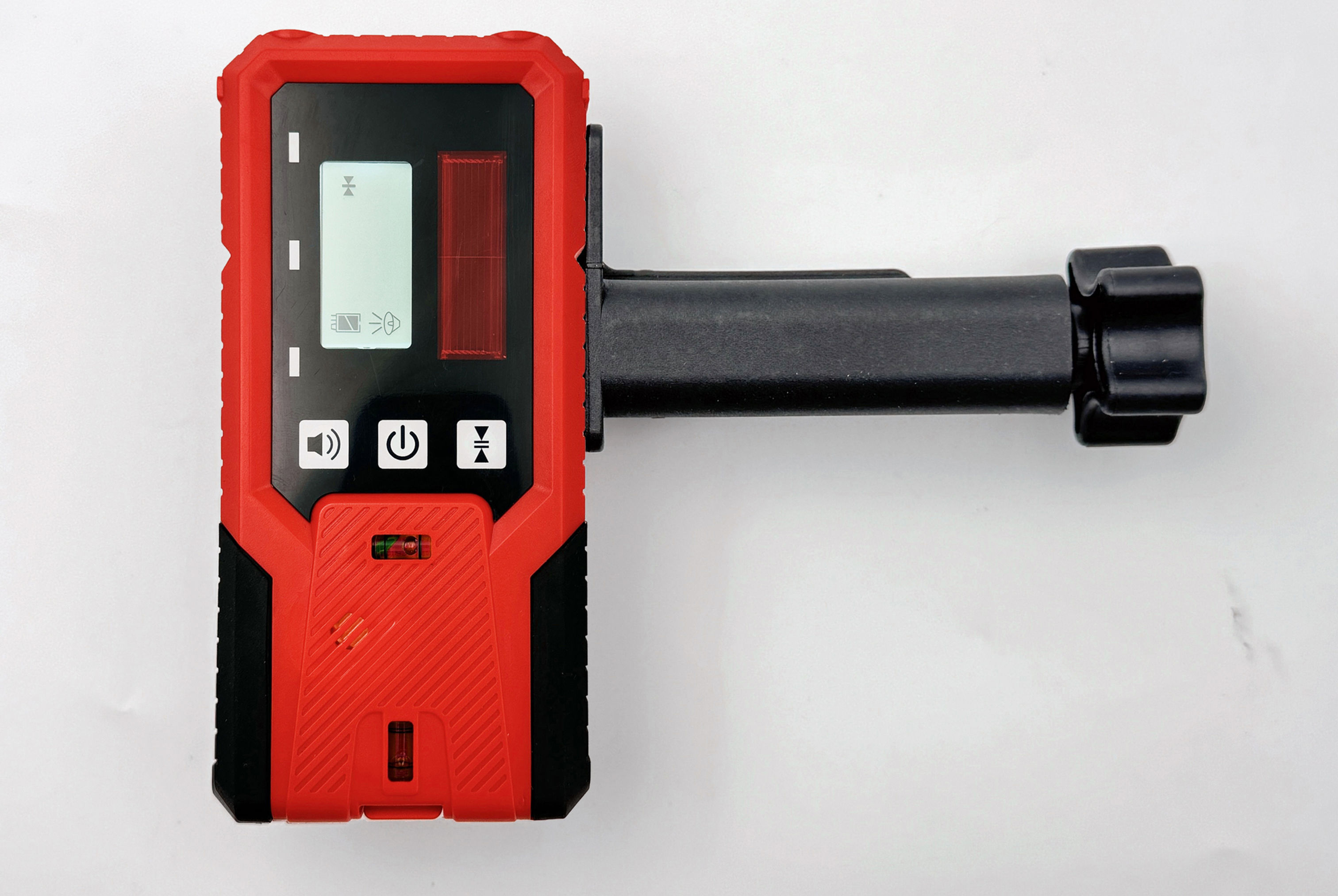

Proline RLR100 Universal Receiver for ALL Rotating Laser Levels.



Features:

  • Front Display with Lights, Back Lights
  • Audible tones tell you beam location without watching display
  • Rugged design, with protective over-mould
  • Specification
    Accuracy: high accuracy ±1.5mm(±0.06in)/40m low accuracy ±2.5mm(±0.1in)/40m
    Laser beam detecting display: One sides LCD display, with buzzer
    Length of Receiver Unit: 43mm
    Electricity supply: 4 x 1.5V LR03(AAA) Automatic switch off: about 10 mins without operation or receiving.
    Continuous working time: 40hours
    Working temperature:
    - 10℃~+45℃(- 4℉~122℉)
    Measurement: 165mm (H) x 75mm (W) x 20mm (H)
    Weight: about 210G (without clamp)
    Directions:
  • Detecting range:300m Allows time-saving, close and long range alignment work.
    High-Speed: very fast detection of laser lines Head magnets allow quick attachment to metallic surfaces
    With a 1/4” thread at bottom to mount receiver easily onto tripod.
    Easily fixed to measuring staff with universal holder

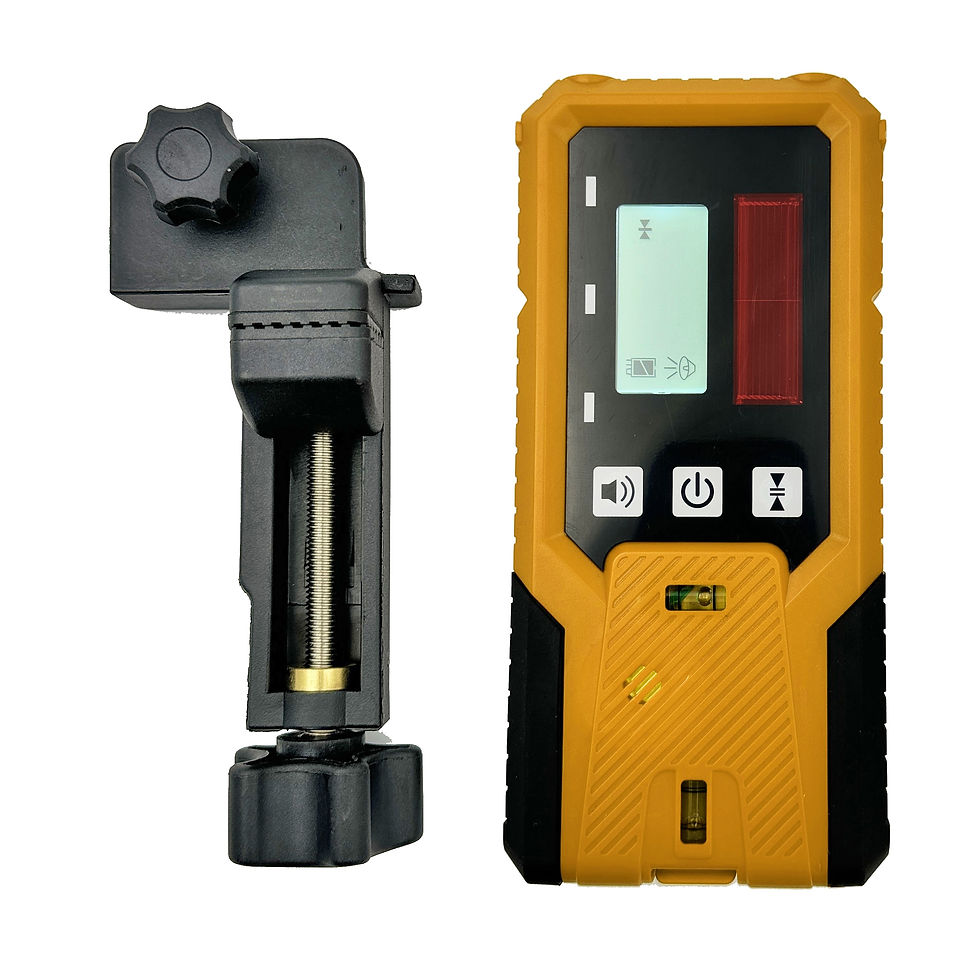

Proline RLR100 Universal Receiver

£89.00Price
Quantity
  • The Proline FRD400 Universal Receiver is also available to hire - please click here.
